As a China hydraulic cylinder manufacturer, HUTCHIN offers telescopic hydraulic cylinders which deliver reliable and efficient lifting and extension capabilities for dump trailers.
In the world of heavy-duty transportation and construction, efficiency and reliability are paramount. Dump trailers, a critical component of this sector, rely heavily on the power and performance of hydraulic cylinders to operate effectively. These dump truck cylinders are the heart of the dump trailer’s lifting mechanism, enabling the smooth and controlled raising and lowering of the trailer's bed. Let's delve into the world of hydraulic cylinders for dump trailers, exploring their significance, types, and maintenance tips to ensure optimal performance.
Hydraulic dump cylinder are pivotal in the operation of dump trailers. They convert the hydraulic energy into mechanical energy, providing the force required to lift heavy loads. This mechanism allows for the efficient transportation and unloading of materials such as gravel, sand, and demolition debris. The choice of a dump truck lift cylinder directly impacts the trailer's lifting capacity, speed, and overall efficiency.
One of the key benefits of using dump truck bed cylinders in dump trailers is their ability to handle heavy loads with precision and safety. Unlike mechanical lifting methods, dump truck lift cylinders offer smoother operation and better control over the load, significantly reducing the risk of accidents. Moreover, these dump truck hydraulic cylinders are designed to withstand harsh working conditions, making them a durable and reliable choice for the construction and transportation industry.
When selecting a cylinder dump truck for a dump trailer, it's essential to understand the different types available and their specific applications. The main types of dump truck hydraulic cylinder used in dump trailers are telescopic hydraulic cylinders and piston cylinders.

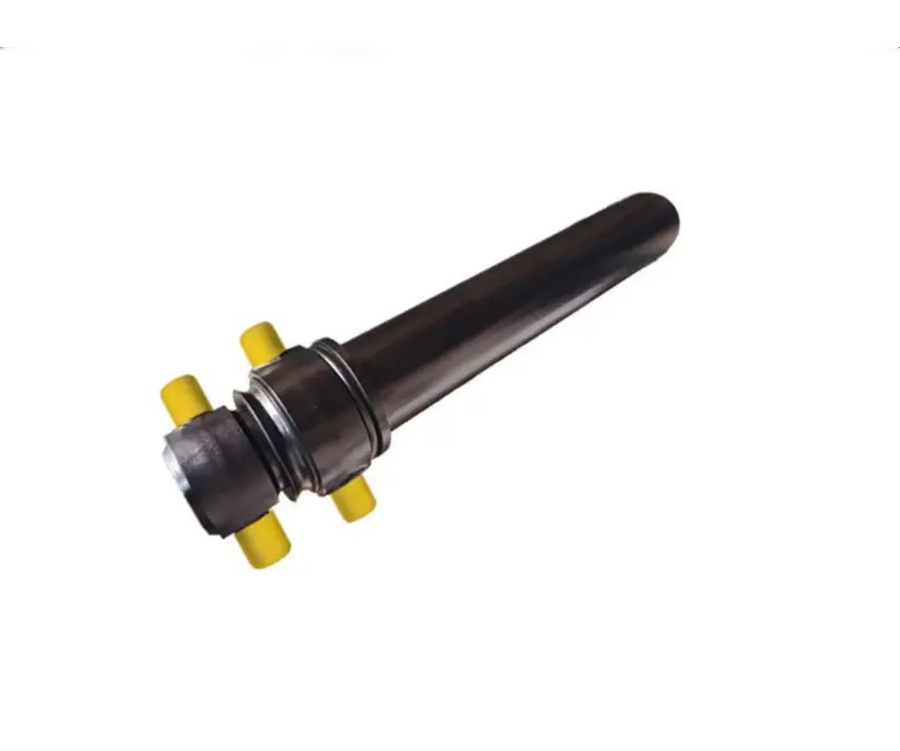

These are also known as multi-stage cylinders. They consist of several cylinders nested within each other, which extend sequentially. Telescopic hydraulic cylinder for dump truck are ideal for dump trailers because they provide a long stroke from a compact retracted length, allowing for a higher dump angle in a limited space. The dump truck telescopic cylinder design maximizes efficiency and space utilization, making it a preferred choice for heavy-duty applications. By using a telescopic cylinder for dump truck, operators can achieve optimal performance and reliability in demanding environments.
A dump bed cylinder is essential for the efficient operation of dump trucks, providing the necessary force to lift and lower the truck bed. Regular maintenance of dump truck bed cylinders is crucial to ensure longevity and optimal performance. Ensuring that the cylinder is clean and free from debris can prevent damage and extend its lifespan. Proper alignment and secure mounting are also vital to avoid uneven wear and potential failure.
HUTCHIN's high-quality hydraulic hoist cylinder dump truck options are designed to provide reliable and efficient performance for your heavy-duty needs. The dump truck cylinder for sale is built to withstand the demanding conditions of construction and transportation environments. We offer a range of telescopic dump truck hoist cylinders that ensure smooth and powerful lifting capabilities. Regular maintenance and proper installation of these cylinders can significantly enhance the longevity and functionality of your dump truck, ensuring safe and efficient operations.
Also known as single-stage cylinders, piston dump truck cylinders have a simple design with one rod and piston. Hydraulic piston for dump truck is known for their robustness and high force output. Although they require more space than telescopic cylinders for the same stroke length, they are suitable for applications where space is not a constraint and high lifting force is needed.
| 2 Stage Telescopic Hydraulic Cylinder for Dump Truck | 3 Stage Telescopic Hydraulic Cylinder for Dump Truck | 4 Stage Telescopic Hydraulic Cylinder for Dump Truck | 5 Stage Telescopic Hydraulic Cylinder for Dump Truck | |
| Number of Stages | 2 | 3 | 4 | 5 |
| Maximum Stroke Length | Short to Medium | Medium | Medium to Long | Long |
| Extended Length | Short to Medium | Medium | Medium to Long | Long |
| Retracted Length | Short | Medium | Medium | Long |
| Lifting Capacity | High | Higher | Even Higher | Highest |
| Application | Light to Medium Duty | Medium Duty | Medium to Heavy Duty | Heavy Duty |
| Cost | Low | Moderate | High | Highest |
| Weight | Light | Moderate | Heavy | Heaviest |
| Installation Space | Requires Less Space | Requires Moderate Space | Requires More Space | Requires Most Space |
| Common Usage | Small Dump Trucks | Medium Dump Trucks | Large Dump Trucks | Extra Large Dump Trucks |
To ensure the longevity and efficient performance of dump truck customized hydraulic cylinder in dump trailers, regular maintenance is crucial. Here are some maintenance tips to keep in mind:
Regular Inspection: Conduct periodic inspections of the hydraulic cylinders, looking for signs of wear, leaks, or damage. Pay special attention to the seals, as they are critical for preventing leaks.
Proper Lubrication: Ensure that all moving parts of the dump body cylinder, especially the piston rod, are adequately lubricated to reduce friction and wear.
Clean Hydraulic Fluid: The hydraulic fluid should be kept clean and at the correct level. Contaminated or insufficient hydraulic fluid can lead to poor performance and damage to the cylinder.
Avoid Overloading: Always adhere to the manufacturer's recommended load capacity. Overloading the dump trailer can strain the hydraulic cylinder and lead to premature failure.
In conclusion, cylinder dump truck play a vital role in the functionality and efficiency of dump trailers. By understanding the different types of dump truck cylinders available and adhering to proper maintenance practices, operators can ensure their dump trailers perform at their best, providing reliable and safe operation in the demanding environments of construction and transportation.
